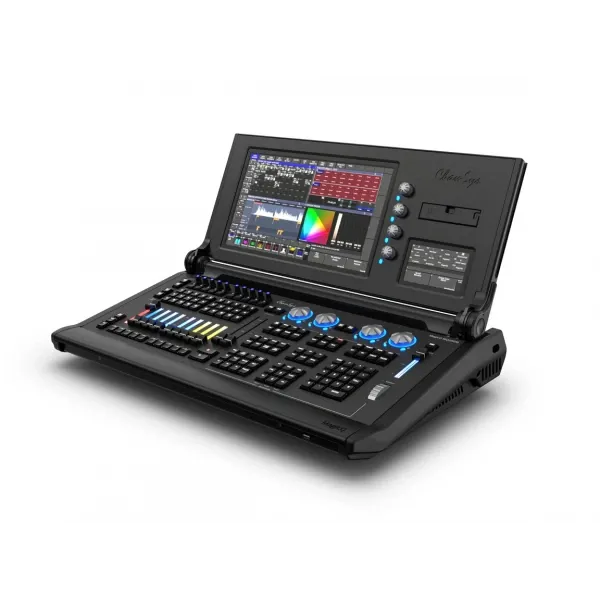

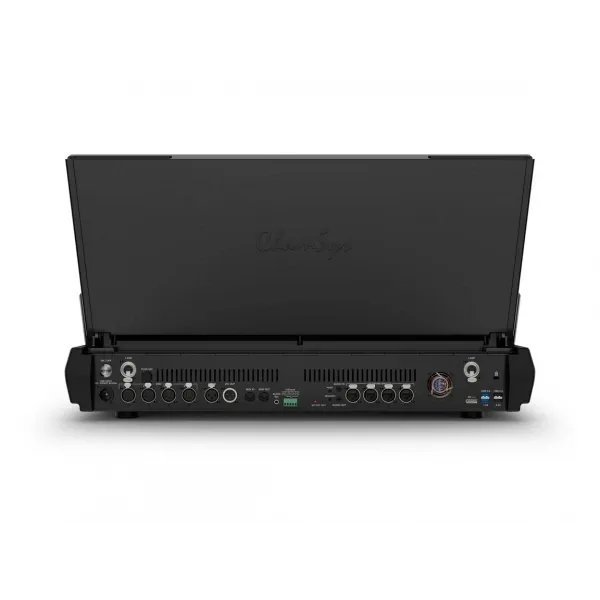

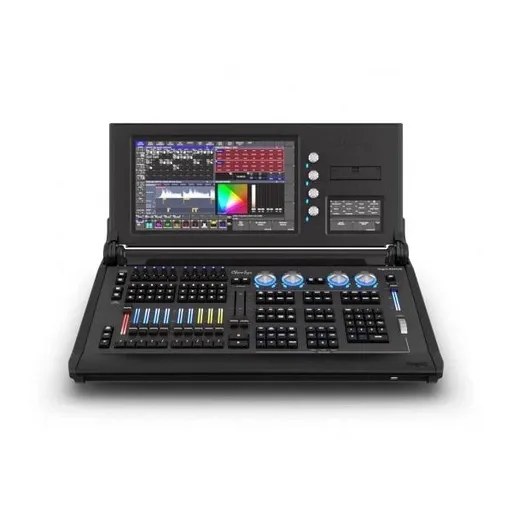

ChamSys MagicQ MQ250M

MagicQ MQ250M Stadium combines a high capacity of show control with portability for a complete on-the-go console solution. MQ250M has the ability to control up to 128 universes without any additional processing equipment with the ready-to-go MagicQ software you are already familiar with. 10 backlit and motorised faders and 10 backlit playback encoders with executors give you a lot of programming real estate in the small frame MQ250M is designed in

FEATURES

• 64 universes direct from the console, with 128 universe upgrade option
• 10 fully motorised fader playbacks
• 10 encoder playbacks
• RGB illumination of playbacks
• Backlit buttons
• Inbuilt 15" Multi HD touch display
• Dedicated 5" Attribute/Encoder touch display
• Dual 100mm Manual Cross Faders
• 2 dedicated high power USBs for charging of phones/tablets
• Inbuilt Wi-Fi connects to MagicQ Remote control app

HARDWARE SPECIFICATIONS

• Universes direct from the console (via Artnet/sACN/Pathport): 64* expandable to 128
• Direct DMX Outputs: 4
• Motorised Playbacks: 10
• Encoder Playbacks: 10
• Total no of Playbacks: 20 (10+10)
• Dual Cross Faders: Yes
• Attribute Encoders: 8
• Backlit Keys: Yes
• Illuminated Playback/Encoders with RGB control: Yes
• Intensity Wheel: 1
• Network Ports: 4
• Inbuilt 15" HD Multi-Touch Displays: 1
• Inbuilt Attribute/Execute display: 1
• External Monitor up to 1920x1200 Resolution - Display Port: 1
• USB Ports, including 2 High Power USBs: 6
• Audio Input (1 channel, 7 band): Yes
• Audio Input Sound to Light: Yes
• Audio Output: Yes
• MIDI Ports 1 in and out: Yes
• LTC Timecode Ports in and out: Yes
• 10Scene Port: 1
• Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

SOFTWARE SPECIFICATIONS

• Max Number of DMX Channels: 32,768 *expandable to 65,536
• Max Number of Fixtures Supported: 32,768 *expandable to 65,536
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Numbers of Shows: Virtually unlimited (500GB SSD)

INCLUDED ACCESSORIES

• Dual Colour Desk lights: 2
• Dust cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1
• Display port to HDMI Cable: 1

FLIGHT CASED WEIGHTS AND DIMENSIONS

• Width: 810mm (31.9 inches)
• Depth: 530mm (20.9 inches)
• Height: 320mm (12.6 inches)
• Weight (console in flightcase): 26kg (57.3lbs)

CONSOLE WEIGHTS AND DIMENSIONS

• Width: 680mm (26.7")
• Depth: 416mm (16.3")
• Height: 159mm (6.25")
• Weight: 13kg (28.6lbs)
